Brushcutter Visual Libra Hymach
Description and Features
The brushcutter boom Visual Libra by Hymach has a forward movement system of the arm that allows the operator to easily keep the shredder under constant control. The self-supporting frame is configured for rear attachment and the quick coupling and release system on the rear lift, in addition to the usual three standard points, can be equipped with a removable coupling frame with the machine for maintenance and green care that creates a single unit with the vehicle without creating torsional rolls of the arm with respect to the tractor. The length of the arm determined by two segments plus telescopic is 7 meters from the center of the tractor to the end of the head. The arm is built in high-strength and elastic Strenx 700. The particular shape of the articulated segments and the telescopic terminal, operating via a hydraulic cylinder, allow working flush with the wheel without obstructing the opposite carriageway and during transfer on the road not to exceed the height encumbrance.
Scope and product specifications
For roads
and highways
Medium-sized
tractors
Available strength
7 meters
Telescopic
boom
Electronic control
panel
The attachments
The Visual Libra brushcutter boom is designed for a 3-point attachment on a tractor lift. To further stabilize the assembly, various types of optional frame are available that the user can choose based on the vehicle to be set up and/or their preferences.
- ASTP – 5-link stabilizer coupling frame for rear-mounted machine.
- ATMR – trapezoid stabilizer attachment for rear-mounted machine with installation on tractor.
The standard machine is designed for application on rear lift and for work on the right. On request it can be made for attachment to front lift and/or designed for work on the left of the vehicle.

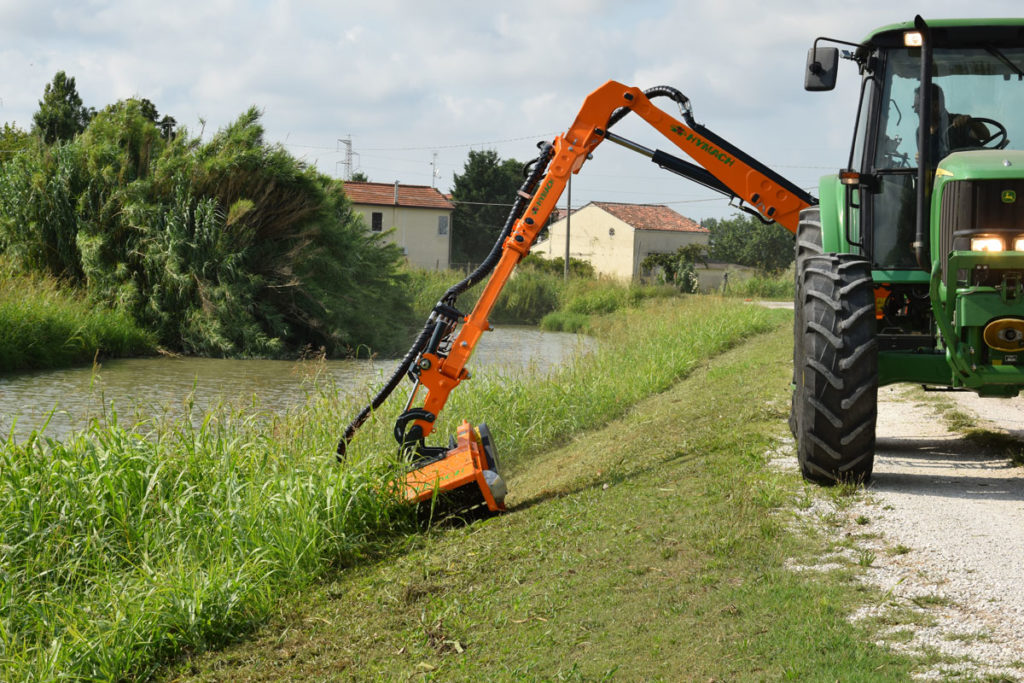

Brushcutter Visual Libra Hymach Gallery
